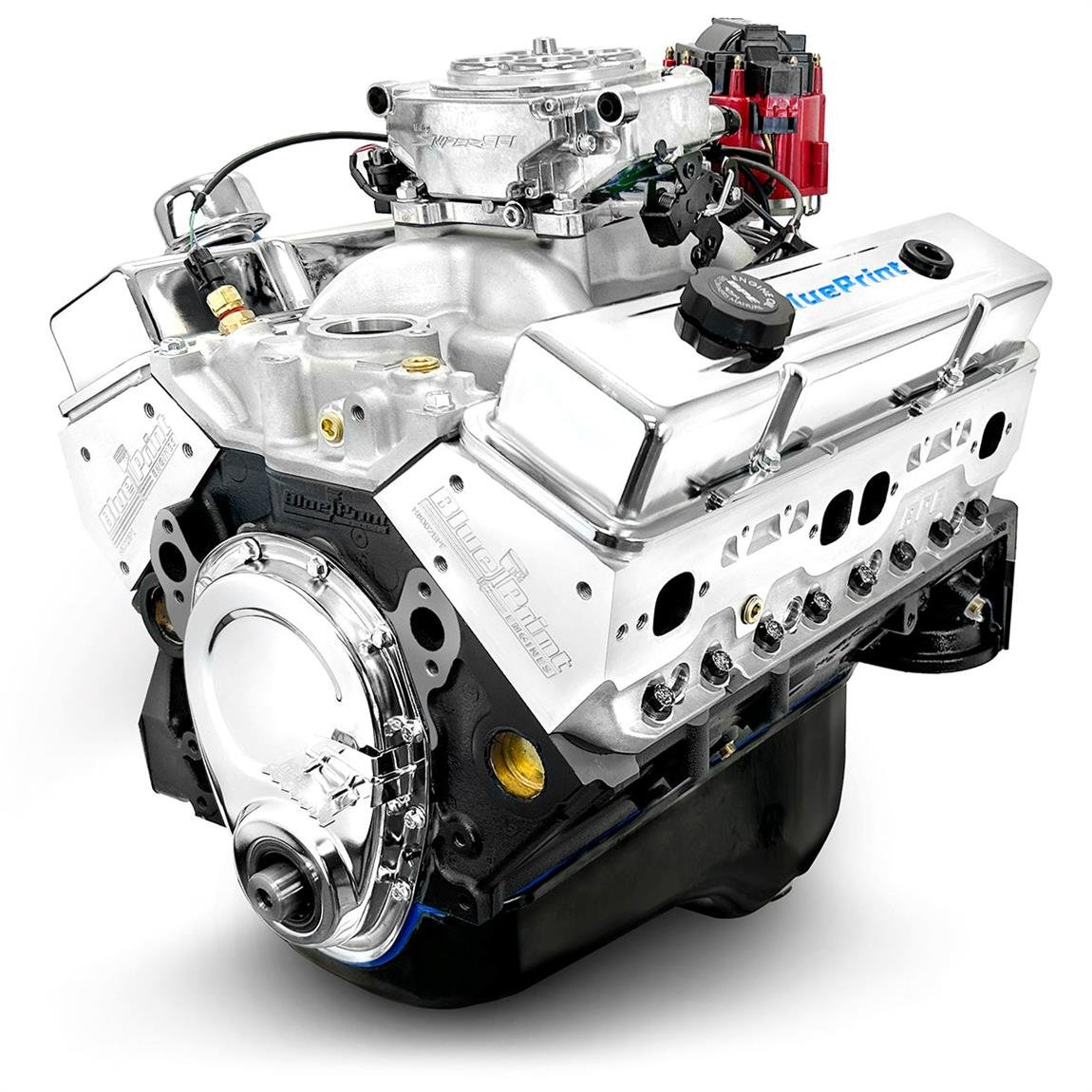

BluePrint BP350CTF 350 Cruiser Crate Engine, Base Dressed, EFI

BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine Dyno Tested Small Block GM Style Fuel Injection Base Dressed Longblock HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1 Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons BLOCK:NEW BluePrint Cast Iron BlockManufactured and Machined in the USA!4-Bolt Main4.000″ Bore1-Piece Rear Main SealMech fuel pump provision: YesPassenger Side DipstickDrilled and tapped for clutch linkage ROTATING ASSEMBLY:Cast Iron Crankshaft3.480″ StrokeForged 5.700″ connecting rodsHypereutectic pistonsInternal Front/ External Rear engine balance CYLINDER HEADS:BluePrint Aluminum Cylinder Heads – H8002K64cc chamber2.02″ intake/1.60″ exhaust valves195cc intake/75cc exhaust runners CAM SPECS:Cam Type: Roller.477 Intake .471 Exhaust202 Intake / 212 Exhaust duration@ .050 – 115 degree lobe separation IGNITION TIMING:32 Degrees Total at 3500 RPM ALSO INCLUDES:Valve coversOil panTiming coverAluminum intakeHEI distributorEFI systemDyno test results shipped with engine WARRANTY:30 month / 50,000 mile NOTES: This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel. Highlights BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine Dyno Tested Small Block GM Style Fuel Injection Base Dressed Longblock HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1 Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons Specifications Crate Engine Type: Connect and Cruise Engine Displacement: 350 cu. in. Horsepower: 341 horsepower Compression Ratio: 9.2:1 Torque: 371 ft./lbs. Camshaft Type: Hydraulic Roller Cylinder Head Material: Aluminum Piston Material: Hypereutectic Aluminum Crankshaft Material: Cast Iron Combustion Chamber Volume: 64cc Camshaft Duration (.050 in): 202° intake / 212° exhaust Camshaft Lift (in): .477 intake / .471 exhaust Bore x Stroke (in): 4.000″ x 3.480″ Carburetor Included: Yes Intake Manifold Included: Yes Distributor Included: Yes Valve Covers Included: Yes Assembled: Yes Engine Balance: Internal Cylinder Heads Included: Yes Rear Main Seal Style: 1-piece Throttle Body Included: No Oil Pan Included: Yes Timing Cover Included: Yes Water Pump Included: No Harmonic Balancer Included: Yes Flexplate Included: No Flywheel Included: No Air Cleaner Included: No Spark Plugs Included: Yes Spark Plug Wires Included: Yes Computer Included: No Wiring Harness Included: No Cylinder Head Style: Assembled Intake Valves Included: Yes Exhaust Valves Included: Yes Valve Spring Included: Yes Retainers Included: Yes Head Gaskets Included: Yes Intake Gaskets Included: Yes Camshaft Included: Yes MFG. Part #: BP350CTF GTIN Code: 887753800732 Sold in Quantity: Each Brand: BluePrint Engines Emissions Notice Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
